Name: Hybrid Ceramic Bearings
Brand: LINOX Bearing
SKU: 04

Product List

Grouped as a single deep groove family so buyers can review model, bore, outside diameter, width, fitting dimensions, and ceramic ball weight options in one table.

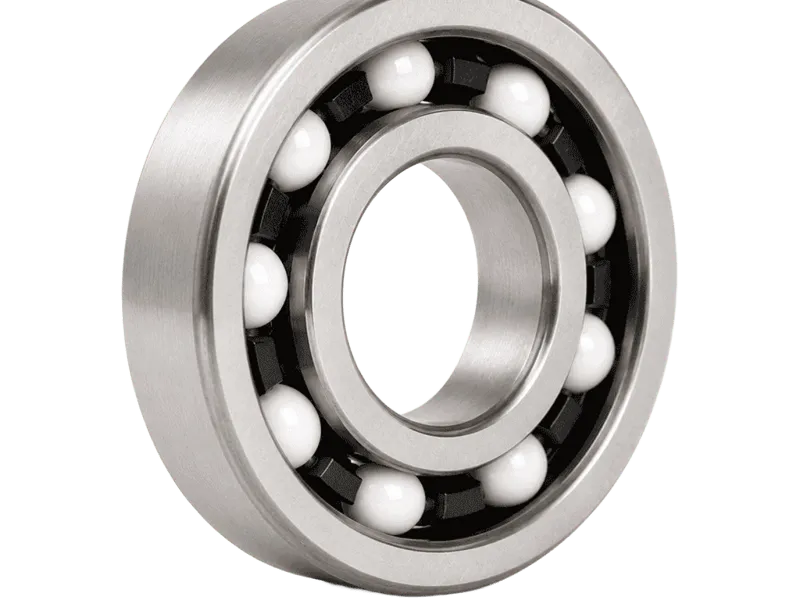

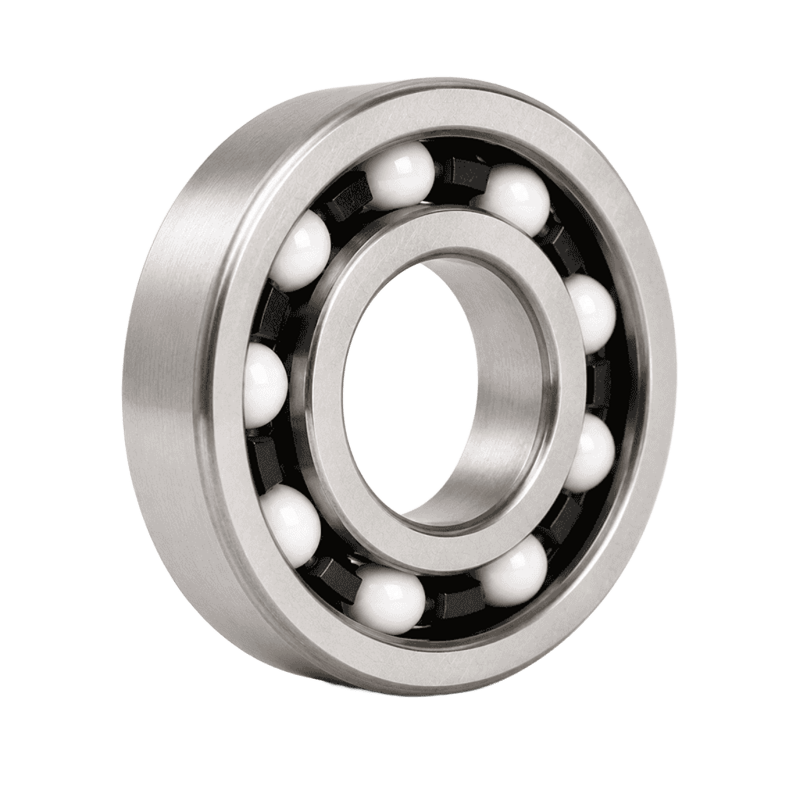

Stainless steel hybrid ceramic deep groove ball bearings are selected for compact rotating positions that need corrosion resistance, lower friction, and ceramic ball options without moving to a full ceramic bearing.

Deep Groove Structure: Single-row radial bearing geometry for motors, pumps, rollers, and general rotating assemblies.
Ceramic Ball Options: Si3N4 and ZrO2 ball weights are listed separately to support application review and quotation.
Stainless Ring Review: Ring grade can be reviewed against washdown, chloride exposure, speed, and hardness requirements.

Construction and Type

Hybrid ceramic means the bearing keeps metal rings while using ceramic rolling balls. It is different from a full ceramic bearing where both rings and balls are ceramic.

Single-row deep groove ball bearing structure
Stainless steel ring options reviewed by application
Si3N4 or ZrO2 ceramic ball options for low-friction or corrosion-sensitive positions

Parameter

Model	Bore d (mm)	Outer D (mm)	Width B (mm)	r min (mm)	da min (mm)	da max (mm)	Da max (mm)	ra max (mm)	Weight ZrO2 (kg)	Weight Si3N4 (kg)
684C	4	9	2.5	0.1	4.8	/	8.2	0.1	0.0005	0.0003
696C	6	15	5	0.2	7.6	/	13.4	0.2	0.003	0.0016
698C	8	19	6	0.3	10	/	17	0.3	0.0056	0.003
6000C	10	26	8	0.3	12	13	24	0.3	0.014	0.0075
6902C	15	28	7	0.3	17	17	26	0.3	0.012	0.0063
6403C	17	62	17	1.1	23.5	/	55.5	1	0.21	0.11
16005C	25	47	8	0.3	27	/	45	0.3	0.045	0.025
6406C	30	90	23	1.5	54	/	82	2	0.57	0.31
6210C	50	90	20	1.1	56.5	60	83.2	1	0.35	0.19
6912C	60	85	13	1	65	66	80	1	0.15	0.08
684C	4	9	2.5	0.1	4.8	/	8.2	0.1	0.0005	0.0003
694C	4	11	4	0.15	5.2	/	9.8	0.15	0.0013	0.0007
604C	4	12	4	0.2	5.6	/	10.4	0.2	0.0017	0.0009
624C	4	13	5	0.2	5.6	/	11.4	0.2	0.0023	0.0013
634C	4	16	5	0.3	6	/	14	0.3	0.004	0.0022
685C	5	11	3	0.15	6.2	/	9.8	0.15	0.0009	0.0005
695C	5	13	4	0.2	6.6	/	11.4	0.2	0.0019	0.001
605C	5	14	5	0.2	6.6	/	12.4	0.2	0.0027	0.0015
625C	5	16	5	0.3	7	/	14	0.3	0.0038	0.0021
635C	5	19	6	0.3	7	/	17	0.3	0.0066	0.0036
686C	6	13	3.5	0.15	7.2	/	11.8	0.15	0.0015	0.0008
696C	6	15	5	0.2	7.6	/	13.4	0.2	0.003	0.0016
606C	6	17	6	0.3	8	/	15	0.3	0.0046	0.0025
626C	6	19	6	0.3	8	/	17	0.3	0.0063	0.0034
636C	6	22	7	0.3	8	/	20	0.3	0.0108	0.0058
687C	7	14	3.5	0.15	8.2	/	12.8	0.15	0.0017	0.0009
697C	7	17	5	0.3	9	/	15	0.3	0.004	0.0022
607C	7	19	6	0.3	9	/	17	0.3	0.0059	0.0032
627C	7	22	7	0.3	9	/	20	0.3	0.0098	0.0053
637C	7	26	9	0.3	9	/	24	0.3	0.0185	0.01
688C	8	16	4	0.2	9.6	/	14.4	0.2	0.0025	0.0014
698C	8	19	6	0.3	10	/	17	0.3	0.0056	0.003
608C	8	22	7	0.3	10	/	20	0.3	0.0093	0.005
628C	8	24	8	0.3	10	/	22	0.3	0.013	0.0072
638C	8	28	9	0.3	10	/	26	0.3	0.022	0.012
689C	9	17	4	0.2	10.6	/	15.4	0.2	0.0027	0.0015
699C	9	20	6	0.3	11	/	18	0.3	0.0065	0.0035
609C	9	24	7	0.3	11	/	22	0.3	0.011	0.006
629C	9	26	8	0.3	11	/	24	0.3	0.015	0.0081
639C	9	30	10	0.6	13	/	26	0.6	0.028	0.015
6800C	10	19	5	0.3	12	12	17	0.3	0.004	0.0021
6900C	10	22	6	0.3	12	12.5	20	0.3	0.007	0.0038
6000C	10	26	8	0.3	12	13	24	0.3	0.014	0.0075
6200C	10	30	9	0.6	14	16	26	0.6	0.025	0.013
6300C	10	35	11	0.6	14	16.5	31	0.6	0.04	0.022
6801C	12	21	5	0.3	14	14	19	0.3	0.005	0.0025
6901C	12	24	6	0.3	14	14.5	22	0.3	0.008	0.0042
16001C	12	28	7	0.3	14	/	26	0.3	0.015	0.0079
6001C	12	28	8	0.3	14	15.5	26	0.3	0.017	0.0092
6201C	12	32	10	0.6	16	17	28	0.6	0.028	0.015
6301C	12	37	12	1	17	18	32	1	0.046	0.025
6802C	15	24	5	0.3	17	17	22	0.3	0.005	0.0029
6902C	15	28	7	0.3	17	17	26	0.3	0.012	0.0063
16002C	15	32	8	0.3	17	/	30	0.3	0.021	0.011
6002C	15	32	9	0.3	17	19	30	0.3	0.024	0.013
6202C	15	35	11	0.6	19	20.5	31	0.3	0.035	0.019
6302C	15	42	13	1	20	22.5	37	1	0.064	0.035
6803C	17	26	5	0.3	19	19	24	0.3	0.005	0.0029
6903C	17	30	7	0.3	19	19.5	28	0.3	0.013	0.0071
16003C	17	35	8	0.3	19	/	33	0.3	0.025	0.014
6003C	17	35	10	0.3	19	21.5	33	0.3	0.032	0.017
6203C	17	40	12	0.6	21	23.5	36	0.6	0.052	0.028
6303C	17	47	14	1	22	25.5	42	1	0.087	0.047
6403C	17	62	17	1.1	23.5	/	55.5	1	0.21	0.11
6804C	20	32	7	0.3	22	22.5	30	0.3	0.013	0.007
6904C	20	37	9	0.3	22	24	35	0.3	0.028	0.015
16004C	20	42	8	0.3	22	/	40	0.3	0.037	0.02
6004C	20	42	12	0.6	24	25.5	38	0.6	0.052	0.028
6204C	20	47	14	1	25	26.5	42	1	0.082	0.045
6304C	20	52	15	1.1	26.5	28	45.5	1	0.11	0.06
6404C	20	72	19	1.1	26.5	/	65.5	1	0.31	0.17
6805C	25	37	7	0.3	27	27	35	0.3	0.016	0.009
6905C	25	42	9	0.3	27	28.5	40	0.3	0.032	0.018
16005C	25	47	8	0.3	27	/	45	0.3	0.045	0.025
6005C	25	47	12	0.6	29	30	43	0.6	0.061	0.033
6205C	25	52	15	1	30	32	47	1	0.099	0.054
6305C	25	62	17	1.1	31.5	36	55.5	1	0.18	0.098
6405C	25	80	21	1.5	33	/	72	1.5	0.41	0.22
6806C	30	42	7	0.3	32	32	50	1	0.018	0.01
6906C	30	47	9	0.3	32	34	57	1	0.04	0.022
16006C	30	55	9	0.3	32	42.5	65.5	1	0.067	0.036
6006C	30	55	13	1	35	36.5	53	1	0.089	0.048
6206C	30	62	16	1	35	38.5	60	1	0.15	0.083
6306C	30	72	19	1.1	36.5	42.5	68.5	1	0.27	0.14
6406C	30	90	23	1.5	54	/	82	2	0.57	0.31
6807C	35	47	7	0.3	37	37	45	0.3	0.021	0.011
6907C	35	55	10	0.6	39	39	51	0.6	0.058	0.031
16007C	35	62	9	0.3	37	/	60	0.3	0.082	0.045
6007C	35	62	14	1	40	41.5	57	1	0.12	0.063
6207C	35	72	17	1.1	41.5	44.5	65.5	1	0.22	0.12
6810C	50	65	7	0.3	52	52.5	63	0.3	0.038	0.021
6910C	50	72	12	0.6	54	55	68	0.6	0.1	0.06
16010C	50	80	10	0.6	54	/	76	0.6	0.13	0.07
6010C	50	80	16	1	55	58.5	75	1	0.2	0.11
6210C	50	90	20	1.1	56.5	60	83.2	1	0.35	0.19
6310C	50	110	27	2	59	68	101	2	0.82	0.44
6410C	50	130	31	2.1	61	/	119	2	1.45	0.78
6811C	55	72	9	0.3	57	59	70	0.3	0.06	0.03
6911C	55	80	13	1	60	61.5	75	1	0.15	0.08
16011C	55	90	11	0.6	59	/	86	0.6	0.2	0.11
6011C	55	90	18	1.1	61.5	64	83.5	1	0.29	0.16
6211C	55	100	21	1.5	63	66.5	92	1.5	0.48	0.26
6311C	55	120	29	2	64	72.5	111	2	1.05	0.57
6411C	55	140	33	2.1	66	/	129	2	1.76	0.95
6812C	60	78	10	0.3	62	64	76	0.3	0.08	0.04
6912C	60	85	13	1	65	66	80	1	0.15	0.08

Application

Used in small motors, pumps, food and beverage machinery, conveyors, precision rollers, and washdown equipment where standard steel bearings may corrode or add unnecessary friction.

Ask About This Series

Grade Selection

Hybrid ceramic bearing selection should confirm ring stainless grade, ceramic ball material, speed, lubrication, and exposure before quotation.

Compare Materials

Material Grade

Description

SS RingsRing material

Stainless steel ring options

304, 316, 440C, or other stainless ring grades can be reviewed according to corrosion exposure, hardness demand, and bearing position.

Si3N4Low friction

Silicon nitride ceramic balls

Low-density ceramic balls are typically reviewed for lower rolling mass, higher-speed positions, and electrical insulation-sensitive applications.

ZrO2Corrosion review

Zirconia ceramic balls

Zirconia ceramic balls can be reviewed for corrosion-sensitive or chemically exposed positions where the application favors ZrO2 properties.

Technical FAQ

Answers regarding hybrid ceramic construction, ceramic ball selection, stainless ring material, and quotation details.

What is a hybrid ceramic deep groove ball bearing?

It uses stainless steel rings with ceramic balls. This differs from a full ceramic bearing, where both the rings and rolling balls are ceramic.

Should I choose Si3N4 or ZrO2 ceramic balls?

Si3N4 is usually reviewed when low density, speed, and low friction are priorities. ZrO2 is reviewed when corrosion or chemical exposure is the stronger concern.

Which stainless steel ring material should I specify?

That depends on the environment. 440C supports higher hardness for rolling contact, while 304 or 316 may be reviewed for washdown or corrosion-focused applications.

What information helps you quote faster?

Please share the bearing model, quantity, ring material preference, ceramic ball material, seal or shield requirement, lubrication, speed, temperature, and application environment.
